GENERAL RESIN BASE RIBBON R20

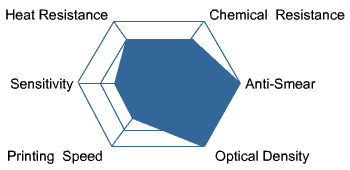

Performance of ribbon
Nature Resin
Total Thickness 6.7¡À0.5¦Ìm
Penetration Density At least 1.0(Macbeth Densitometer)
Print Speed Max.8inch/sec
Print Energy At least 16mj/sq.mm
Print Density At least 1.8(Macbeth Densitometer)
Grade ANSI ABOVE3.5/A(Upright Code)
Recommended Media Substrates PET/Synthetic Paper
Scratch Resistance Image density:Above90%(Uncoated paper)*
Light Resistance Image density:Above80%(Uncoated paper)**
Chemical Resistance Image density:Above70%(Uncoated paper)***
Using Environment 5~35¡æ/20~80%RH
Storage Environment 0~40¡æ/20~80%RH


¡ïThe form above is just for reference.

* Attrition Testing Machine 1.96¡Á104pa    Times:about 3000(Kraft paper)
** Ultraviolet Radiation Machine:720hrs of exposure (equivalent of 1 year's sunshine)
*** Attrition Testing Machine 1.96¡Á104pa Times:20[use carious kinds of solvets(gasoline,light oil,lamp oil);cotton fabric infiltrated by acid (PH3) and alkali (PH12)]
